Spec Generator를 이용한 Portworx 배포
PX-Central 계정생성, 로그인
PX-Central 로그인

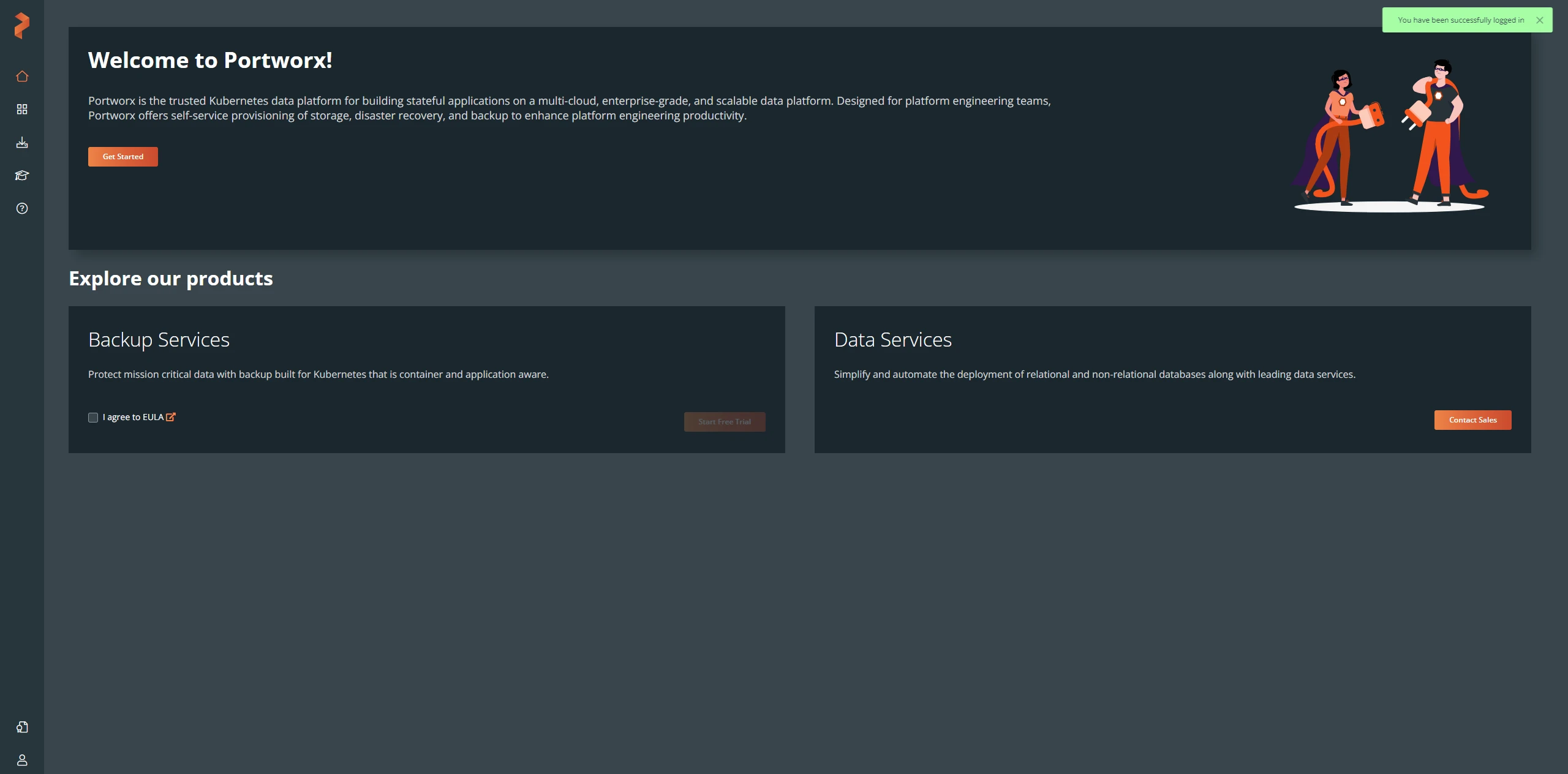

central.portworx.com 대시보드
Install and Run 메뉴 이동 후 Add New Spec 선택

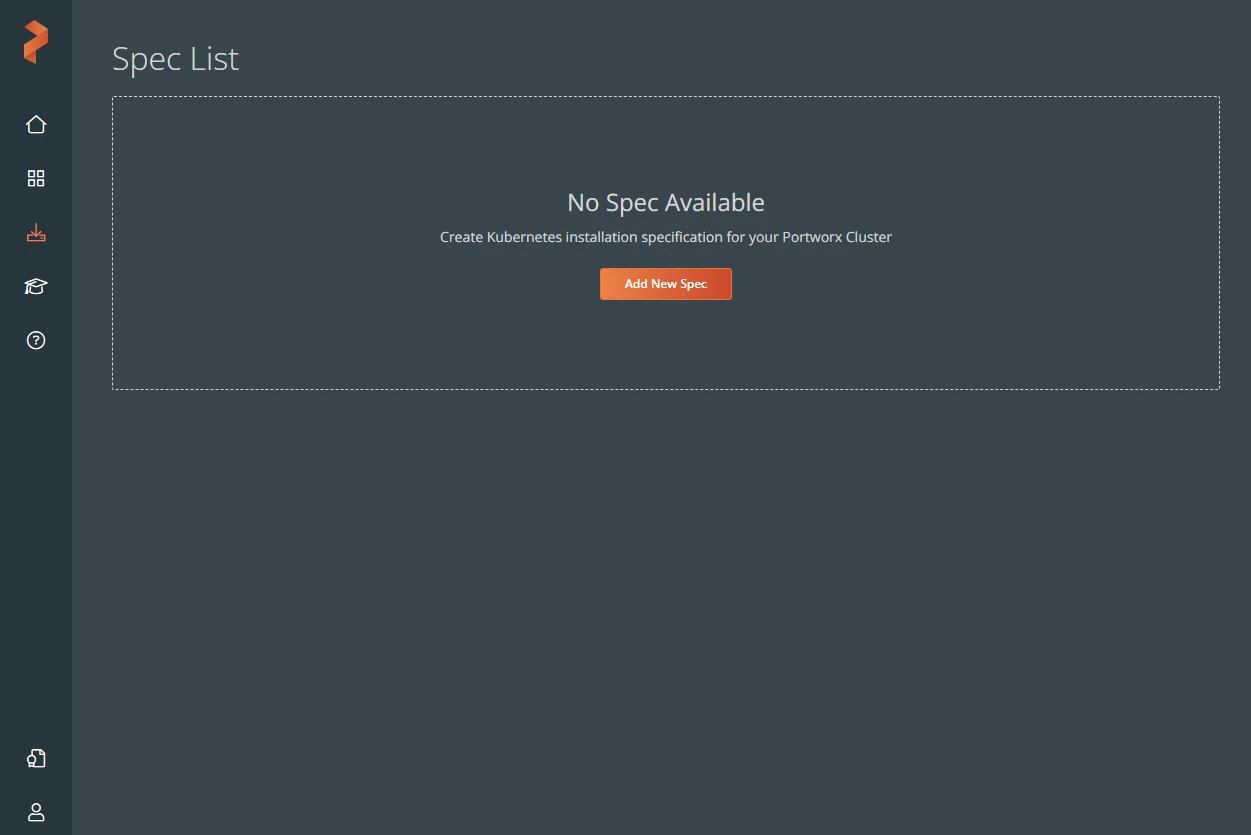

Spec List 화면

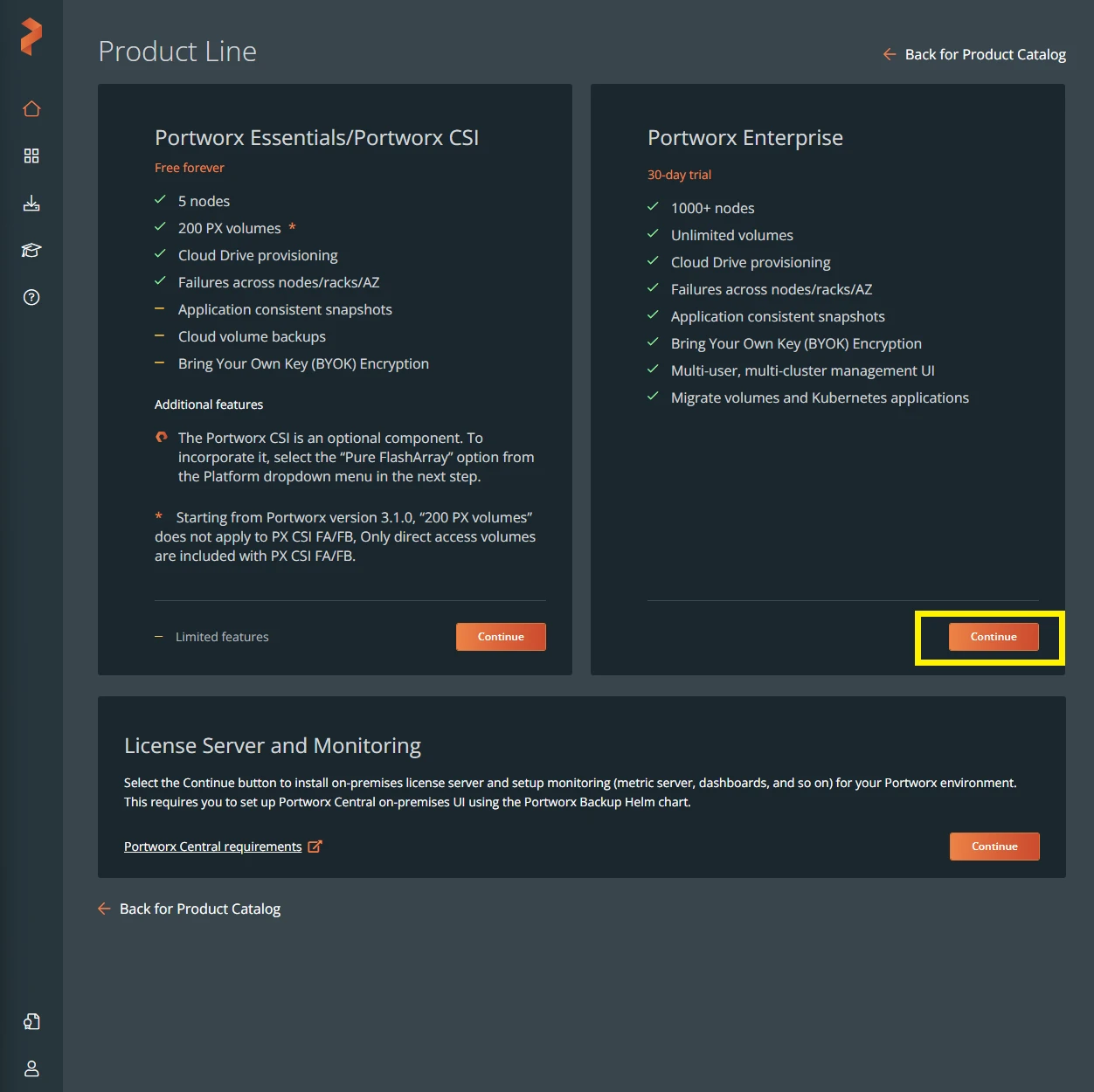

Portworx Enterprise 선택
Add New Spec

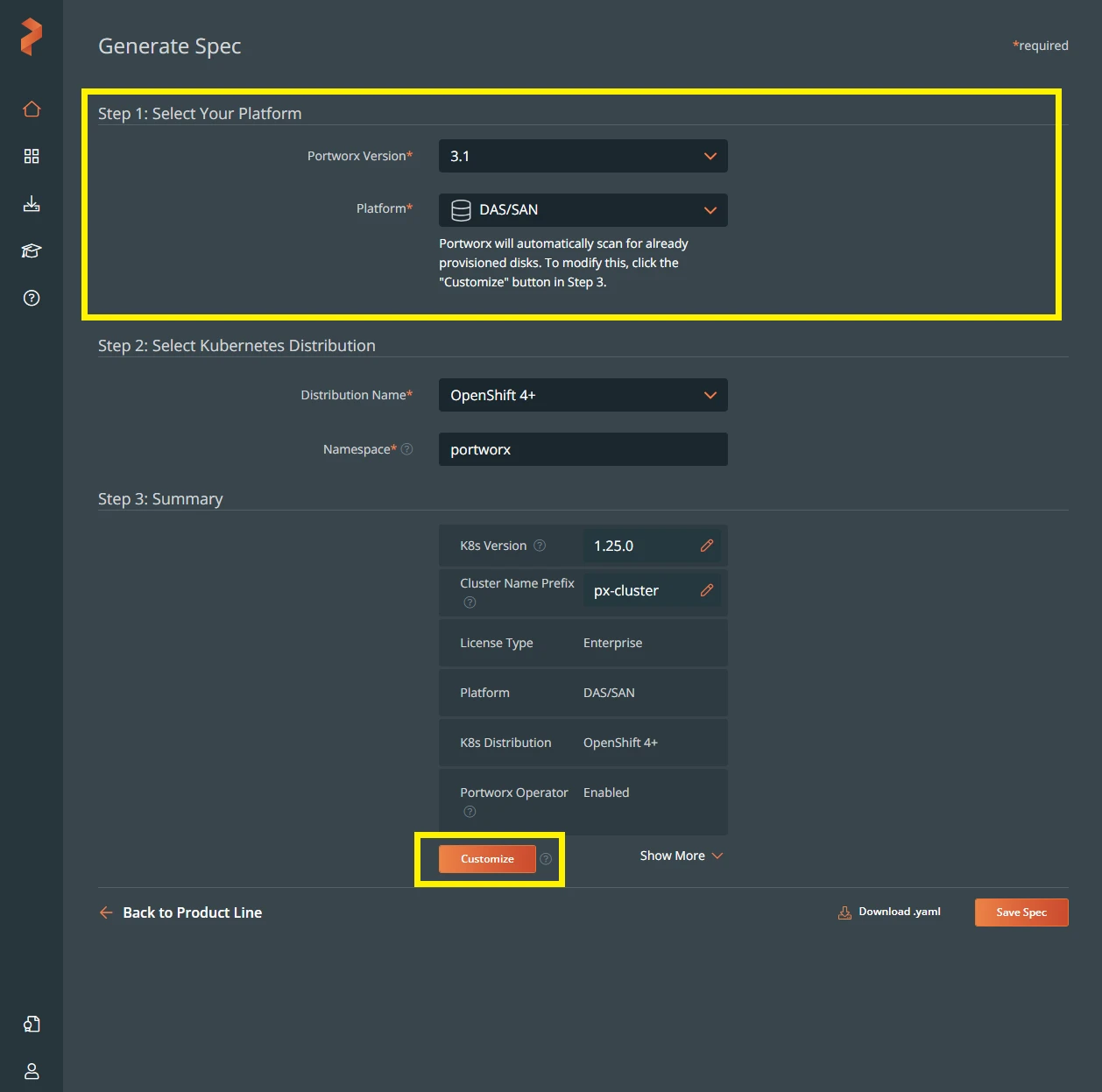

설치 대상 플랫폼 정보 입력 후, Customize 버튼 선택
Portworx Version | 3.1 |
Platform | DAS/SAN |
Step 1: Select Your Platform

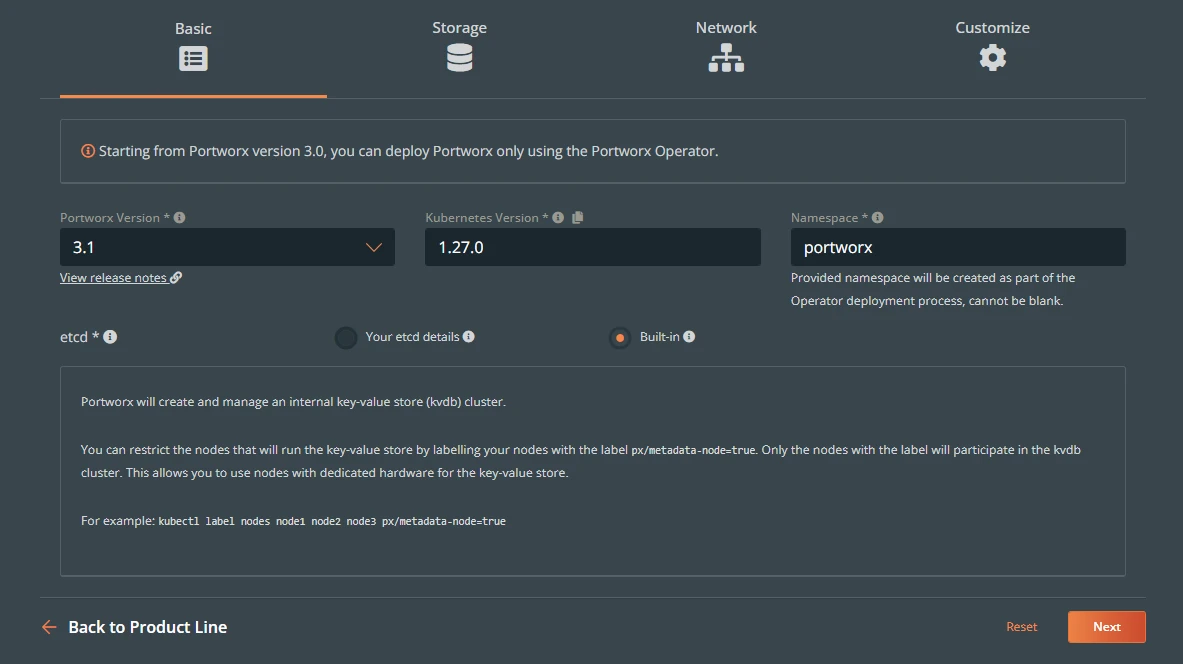

Spec 설정 - Basic
Portworx Version | 3.1 |
Kubernetes Version | 1.27 |
Namespace | portworx |
etcd | Built-in |
쿠버네티스 클러스터 버전은 마스터 노드에서 "kubectl version —output=yaml" 명령어로 확인 할 수 있다.

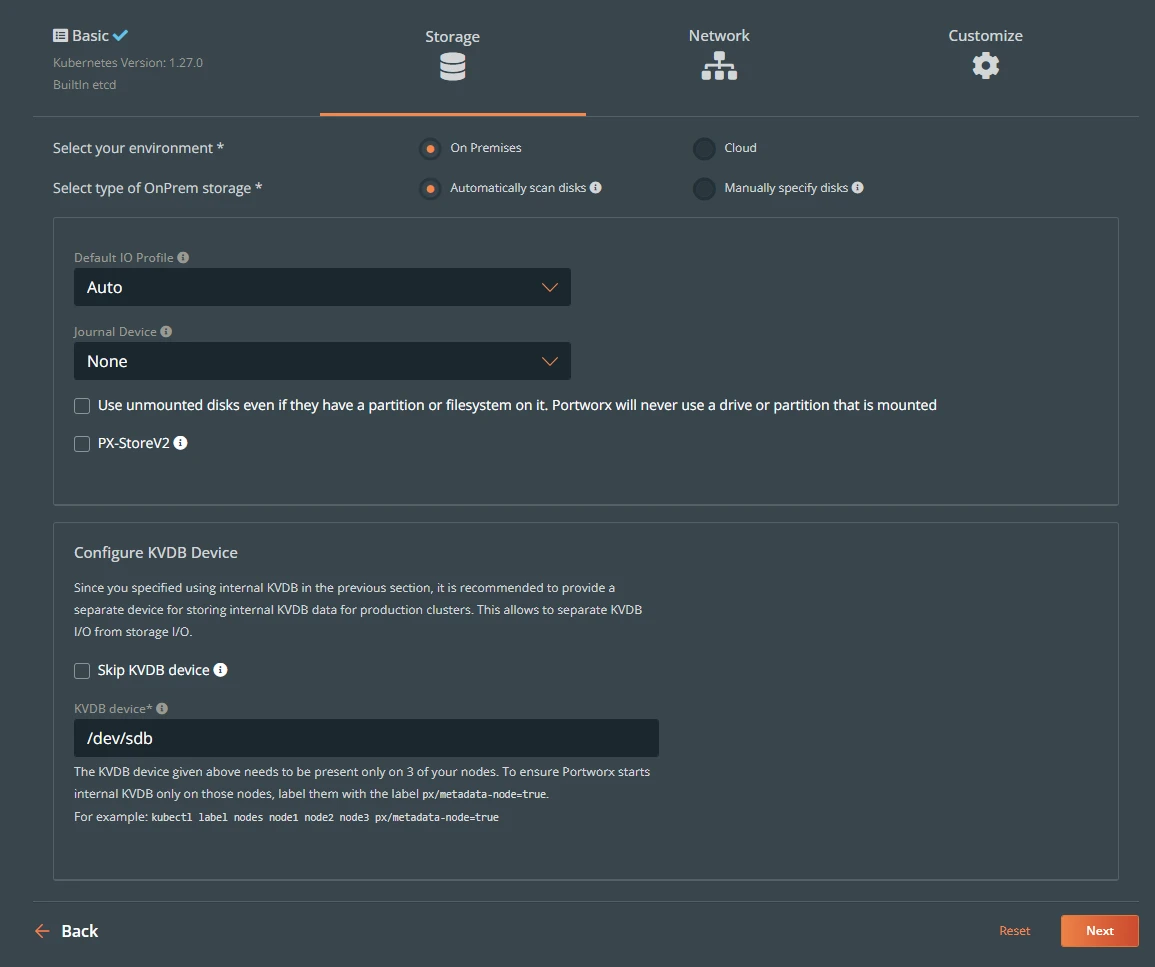

Spec 설정 - Storage
Select your environment | On Premises |
Select type of OnPrem storage | Automatically scan disks |
Default IO Profile | Auto |
Journal Device | None |
Skip KVDB device | 체크 해제, /dev/sdb 지정 |
KVDB 디바이스 지정을 위한 Raw disk 경로 확인은 워커 노드에서 "fdisk -l"로 확인 할 수 있다.

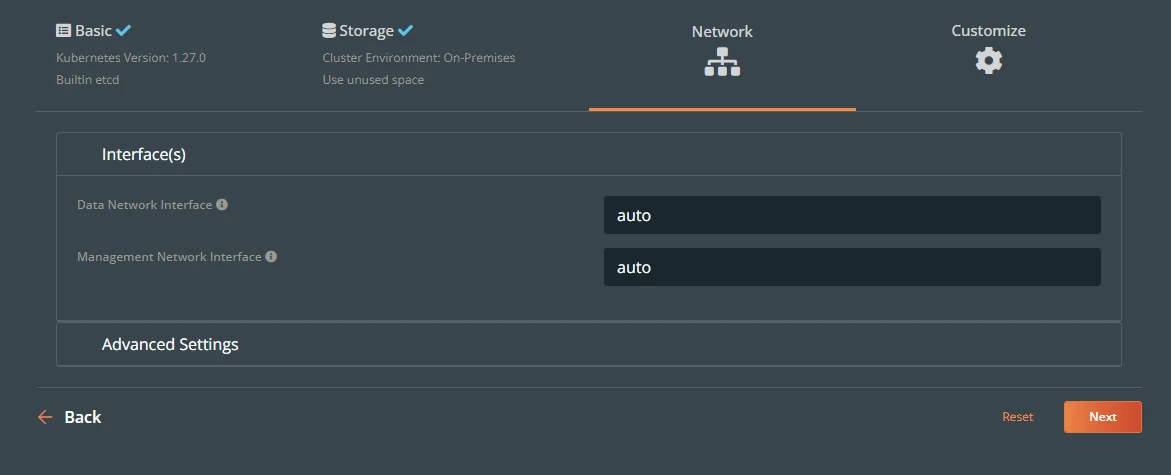

Spec 설정 - Network
Data Network Interface | auto |
Management Network Interface | auto |
Starting port for Portworx services | 17001 (기본값) |

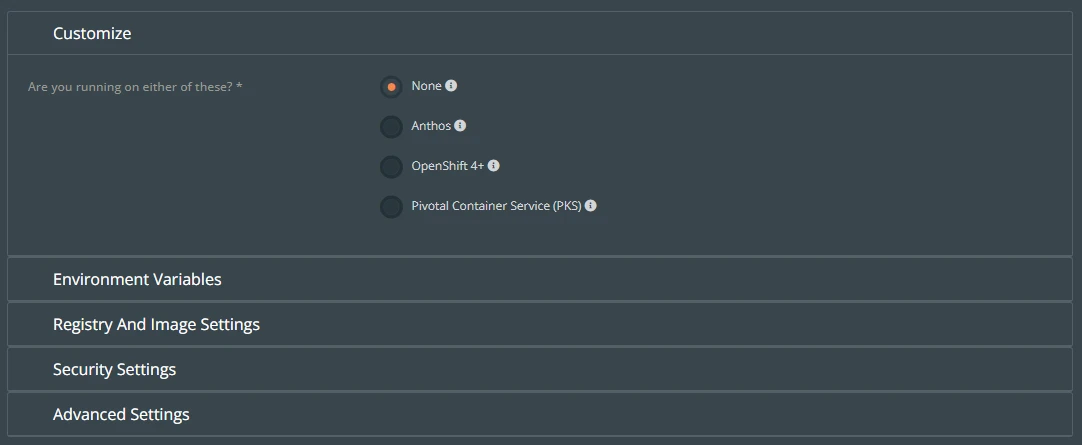

Spec 설정 - Customize
Customize
Are you running on either of these? | None |

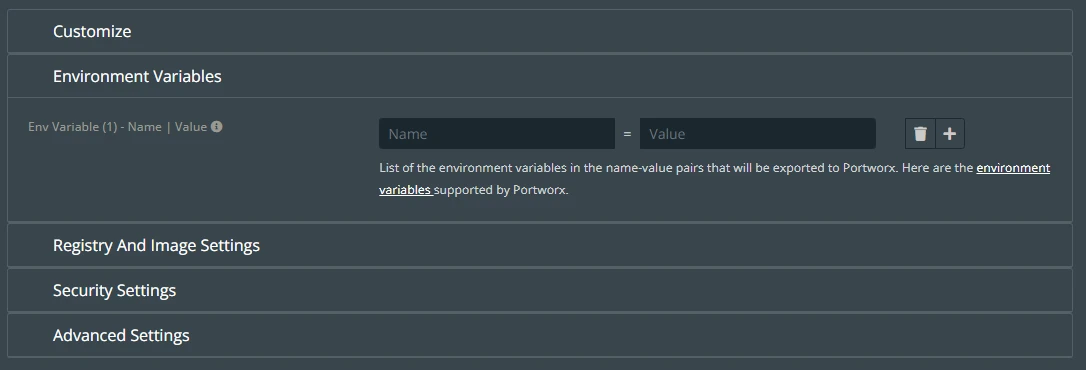

Environment Variables

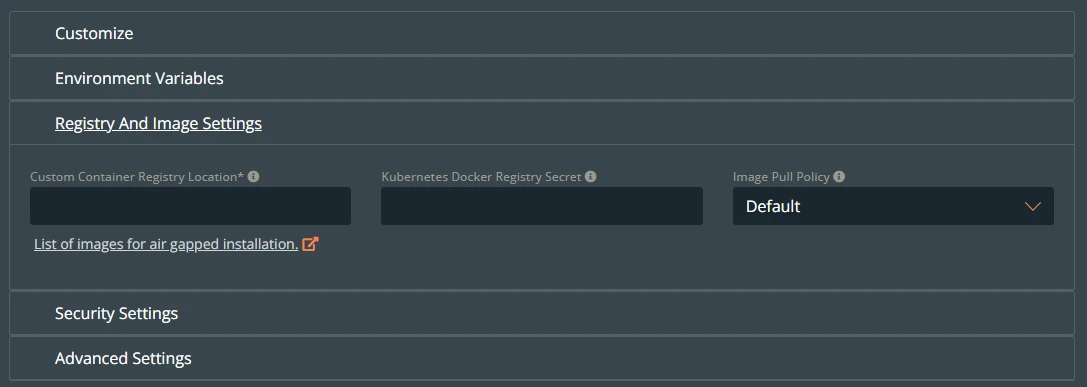

Registry And Image Settings
Portworx Airgap 이미지 목록
docker.io/portworx/px-enterprise:3.1.1.1
docker.io/portworx/oci-monitor:3.1.1.1
docker.io/openstorage/stork:23.11.1
docker.io/openstorage/cmdexecutor:23.11.1
docker.io/portworx/autopilot:1.3.14
docker.io/purestorage/ccm-go:1.2.2
docker.io/purestorage/realtime-metrics:1.0.23
docker.io/purestorage/telemetry-envoy:1.1.11
docker.io/purestorage/log-upload:px-1.1.8
docker.io/portworx/px-operator:23.10.5
registry.k8s.io/pause:3.1
registry.k8s.io/kube-controller-manager-amd64:v1.27.0
registry.k8s.io/kube-scheduler-amd64:v1.27.0
docker.io/portworx/portworx-dynamic-plugin:1.1.1
docker.io/nginxinc/nginx-unprivileged:1.25
registry.k8s.io/kube-scheduler-amd64:v1.21.4
registry.k8s.io/sig-storage/csi-node-driver-registrar:v2.9.0
registry.k8s.io/sig-storage/csi-provisioner:v3.6.1
docker.io/openstorage/csi-attacher:v1.2.1-1
registry.k8s.io/sig-storage/csi-resizer:v1.9.1
registry.k8s.io/sig-storage/csi-snapshotter:v6.3.1
registry.k8s.io/sig-storage/snapshot-controller:v6.3.1
quay.io/prometheus/prometheus:v2.48.1
quay.io/prometheus-operator/prometheus-operator:v0.70.0
quay.io/prometheus-operator/prometheus-config-reloader:v0.70.0
quay.io/prometheus/alertmanager:v0.26.0Security Settings

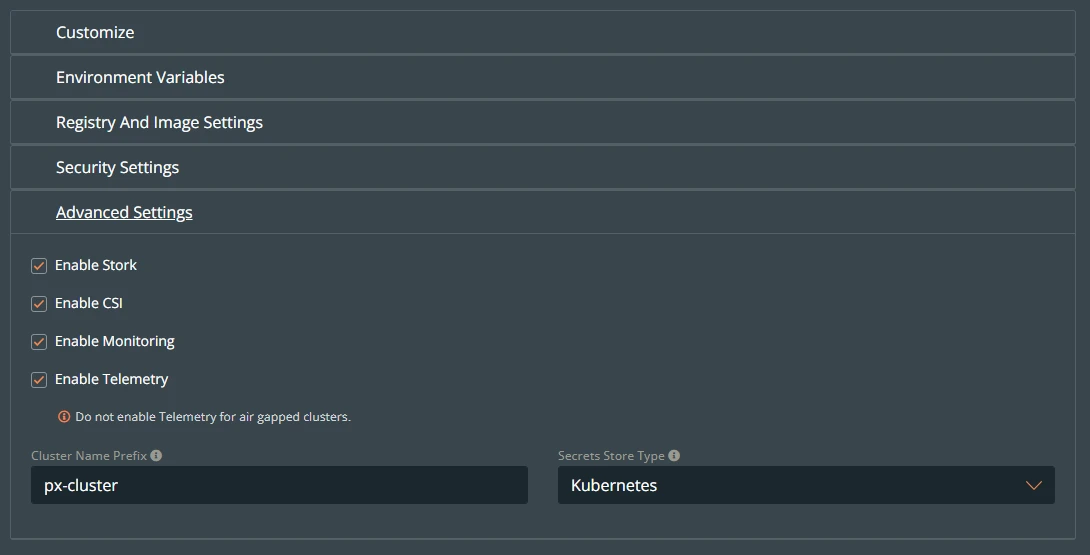

Enable Authorization | 체크 해제 |
Enable Stork | Yes |
Enable CSI | No |
Enable Monitoring | Yes |
Enable Telemetry | No |
Cluster Name Prefix | px-cluster (기본값) |
Kubernetes Store Type | Kubernetes (기본값) |

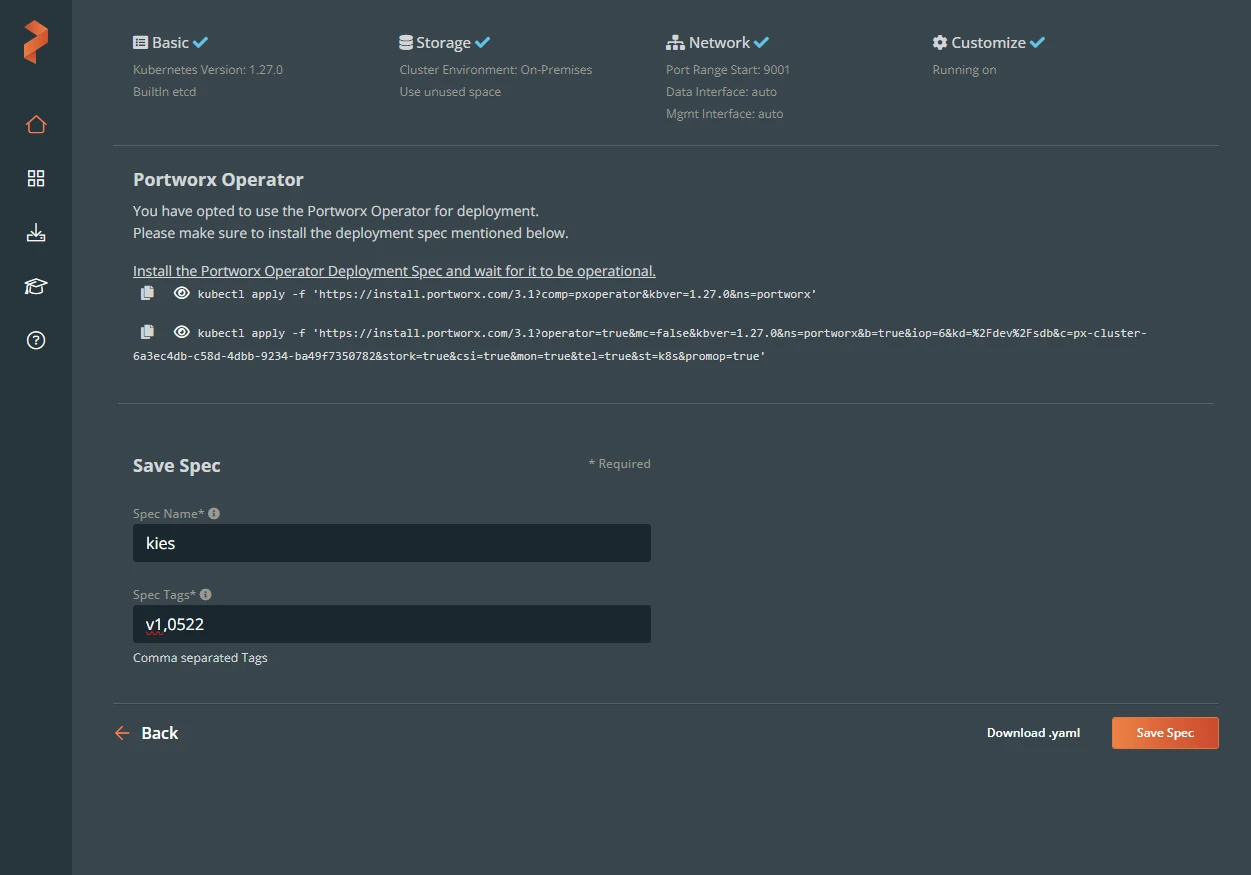

Spec 생성
